PRODUCT

Product Details

Name: Cubyte Soft Sdn Bhd
Address: 84B, Jln BP 7/8, Bandar Bukit Puchong, Puchong, Selangor, 47120, MY
Telephone: +60128542650

2 Years WarrantyInstallation AvailableTraining Available

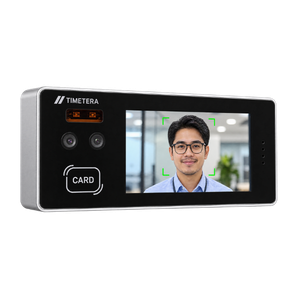

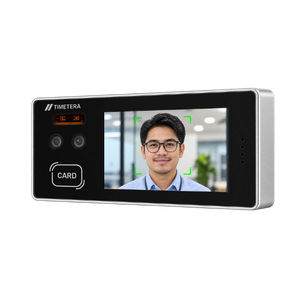

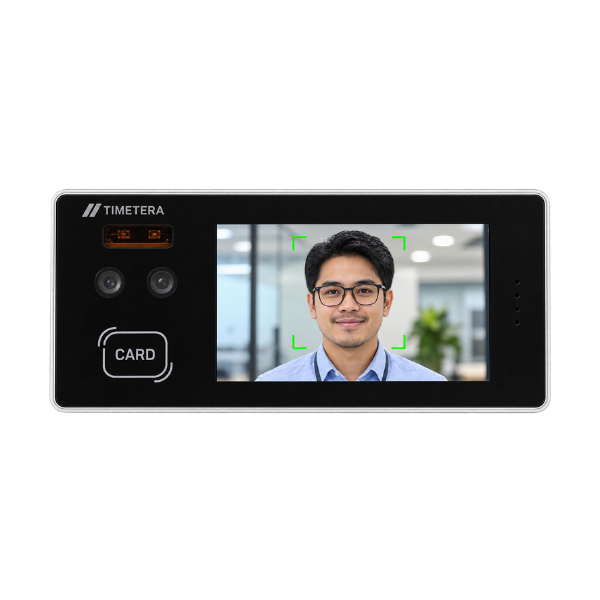

Model	TT-L2AI
Installation	Embedded flush-mount in lift panel
Housing	Metal
Verification	Dynamic face, palm vein, card, password; combination verification
Display	3.5-inch IPS touchscreen; 480 x 320
CPU / NPU	ARM Cortex-A7 / 0.5 TOPS
Memory / Storage	128MB DDR3L / 128MB or 256MB SPI Flash
Operating System	Linux 4.19
User Capacity	15,000
Face Capacity	5,000
Palm Vein Capacity	10,000
Card / Password Capacity	15,000 cards / 15,000 passwords
Card Type	IC RFID standard; ID card upgrade available
Log Capacity	500,000
Recognition Speed	Less than 0.2 seconds
Recognition Distance	0.5–2.5m; 0.5–1.5m with live detection
Live Detection	Dual-camera anti-spoofing
Cameras	1MP colour WDR + 1MP infrared
Standard Communication	TCP/IP, USB Type-A, RS485
Optional Add-ons	WiFi; video intercom
Interfaces	1 relay output; 1 exit-button input; 1 WG26/34 Wiegand output
Controller Pairing	Timetera TT-LC16
Power Supply	DC 12V 2A
Operating Temperature	-15–60°C
Body Dimensions	140 x 70 x 27mm
Panel Cut-out	135 x 65mm

Preview the product catalogue here or open it in a new tab.

Watch the product demonstration and key functions directly here.
